QTP6518 Top Flat Tower Crane 10t Load no Head 50m Free Height Cranetower

Name: QTP6518 Top Flat Tower Crane 10t Load no Head 50m Free Height Cranetower
Brand: HYCM
Price: 137200 USD

Wholesale QTP6518 Top Flat Tower Crane 10t Load no Head 50m Free Height Cranetower from china suppliers

Brand Name : HYCM

Model Number : QTZ180(PT6518) Tower Crane

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $137200-143500 per set

Payment Terms : TT, LC

Supply Ability : 10 sets per month

Delivery Time : 25 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 7*40’HQ containers.

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 10t

Jib length : 65m

Tip. load : 1.8t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 2*2*3m (split type)

Main chord : 200*20mm

Contact Now

QTP6518 Top Flat Tower Crane 10t Load no Head 50m Free Height Cranetower

Performance parameters
• Max. jib length: 65m;
• Max. lifting capacity 10t;
• Max. hoisting capacity at jib tip:1.8t;
• Rated lifting moment: 1800 Kn.m;
• Max. freestanding height: 60m; Max. working height of anchored crane: 180m;

Specification

Model		QTZ180 (PT6518) Topless Tower Crane
Working Radius (m)		65
Max. Load Capacity (T)		10
Tip Load (T)		1.8
Free standing height (m)		60
Max. Height with anchorages (m)		200
Mast Section dimension (m)		2×2×3, angle steel 200×20mm
Hoisting Mechanism	Speed (m/min)	(a=2)0-100; (a=4)0-50
	Motor power (kw)	45
Slewing Mechanism	Speed (r/min)	0-0.6
	Motor power (kw)	2*5.5
Trolleying Mechanism	Speed (m/min)	0-60
	Motor power (kw)	5.5
Jacking-up System	Speed (m/min)	0.4
	Motor power (kw)	7.5
Total Power (kw)		61.5

FAQ
Q1: Will you help with installation and stuff training?
Yes,we will send engineers to you and guide the installation and train your workers.
Q2: How do you control thre quality ?
We insisit the "Quality is priority"always pay attention to quailty control from the very the begining to the end .You can also be reassured by our one-year waranty and ISO certiificates
Q3:Where is your factory located ?How can i visit there ?
Our factory is located Zhangqiu city, shandong province, China.
All our cilents- from home and abroad are warmly welcome to visit us!

Safety Devices

a. 3 obstacle lights

b. Height limiter

c. Slewing limiter

d. Range/ trolley limiter

e. Weight limiter

f. Moment limiter

g. Anemometer and block box(optional)

Photos

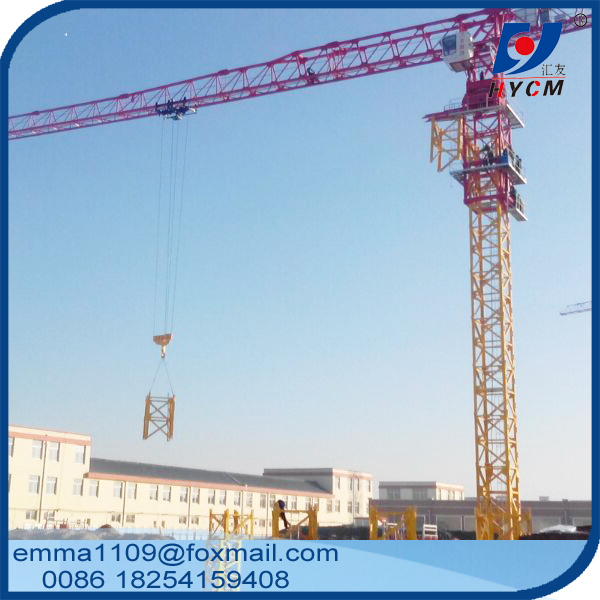

QTP6518 Top Flat Tower Crane 10t Load no Head 50m Free Height Cranetower Images
